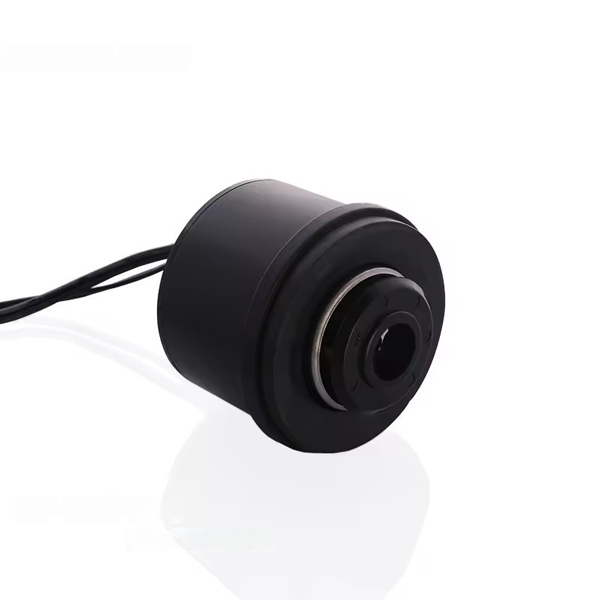

TW D5  PWM Pump
Details

TW D5  PWM Pump Motor is a genuine high-performance D5 water pump with PWM speed control via the motherboard or a dedicated fan/pump controller.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper-quiet operation in idle mode!

Designed for PC and other electronics water cooling systems, the D5 pump utilizes an electronically commutated spherical motor. This design features a single moving part—a spherically shaped rotor—suspended on an ultra-hard, wear-resistant ceramic bearing.

The magnetic rotor self-aligns perfectly on the ceramic bearing, ensuring durability and efficient performance. All fluid-contact components are corrosion-resistant, contributing to the pump’s exceptionally long lifespan and reliable operation.

Technical specifications:

– Rated voltage: 12V DC
– Power consumption: 18W
– Pressure head: 4.5m
– Maximum flow: 1100L/h
– Rated speed: 4000RPM
– Maximum system temperature: 60 ℃
– Connectors: inner G 1/4 (inlet and outlet)
– Nominal current (@12V): 1.5 amps
– Noise level: 40dB(1m)
– Speed  variable: PWM
– MTBF: 20,000 Hours

Operational :
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
